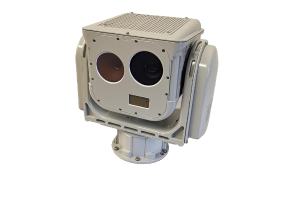

轻型无人车光电转塔

Lightweight Unmanned Vehicle Electro-Optical Turret

产品介绍
  • 集成可见、红外、激光多光谱成像探测载荷，具备昼夜侦察、跟踪、AI 识别、测量能力
  • 模块化设计，电路模块一体化、多款载荷配置可选
  • 可与惯性导航系统深度结合，满足高精度稳像和行车定位需求
  • 小型化轻量化集成化设计，尺寸小、重量轻、稳像效果好
  • 结构电路一体化设计，满足车载环境适应性和 EMC 需求
  • Integrated Multispectral Imaging: Visible light, infrared, and laser for day-night reconnaissance, tracking, AI recognition, and measurement capabilities
  • Modular Design: Integrated circuit modules with multiple payload configurations available
  • Inertial Navigation Integration: Provides high-precision stabilization and vehicular positioning
  • Compact and Lightweight: Small size, low weight, excellent stabilization performance
  • Structural-Circuit Integration: Designed for vehicular environmental adaptability and EMC compliance
技术参数
   系统性能
系统类型 车载跟踪稳像  重量 ＜3.5kg
    伺服性能
平台轴系 两轴两框 方位范围 -90°～+90°
调转速度 ≥60°/s 跟踪速度  ≥25°/s
稳定精度 0.1mrad(1σ，1°/2Hz)  角位置精度 ＜0.1°
 可见光相机
分辨率及帧率 1920×1080@60fps 视场角 2.5°～52°
作用距离

车辆识别跟踪≥4500m     人员识别跟踪≥2000m
红外热像仪
分辨率及帧率 640×512@50fps 视场角 7.3°×5.8°
作用距离 车辆识别跟踪≥1000m    人员识别跟踪≥500m
激光测距机
测量范围 15～3000m（±1m）
系统控制及视频接口
控制接口 RS422 串口 视频接口 HD-SDI/以太网
系统电源接口
电源接口 DC 18V～33V 功耗 平均≤20W   最大≤50W
环境适应性
工作温度 -40℃～+55℃ 储存温度 -50℃～+70℃
振动冲击 GJB150.18A 功能冲击    GJB150.16A 功率谱密度 0.04g²/Hz



 System Performance
System Type Gyro Stabilized Imaging Weight

＜3.5kg
    Servo Performance
Platform Axes Two-axis, two-frame system Azimuth Range N×360°
Slewing Speed +110°～-110° Tracking Speed ≥25°/s
Stabilization Accuracy 0.1mrad(1σ，1°/2Hz)   Angular Position Accuracy ≤0.1°
 Visible Light Camera
Resolution & Frame Rate 1920×1080@60fps Field of View

2.5°～52°
Recognition Distance Vehicle≥4500m    Personnel≥2000m
Infrared Thermal Imaging
Resolution & Frame Rate 640×512@50fps Field of View

7.3°×5.8°
Recognition Distance Vehicle≥1000m    Personnel≥500m
Laser Rangefinder
Laser Rangefinder

15～3000m（±1m）
Control and Interfaces
Control Interface RS422 Video Interface HD-SDI/Ethernet
System Power Interface
Power Input DC 18V～33V Power Consumption

Average ≤20W

Maximum ≤50W
Environmental Adaptability
Operating Temperature -40℃～+55℃ Storage Temperature -50℃～+70℃
Vibration and Shock Functional Shock: GJB150.18A    Power Spectral Density: GJB150.16A (0.04g²/Hz)
