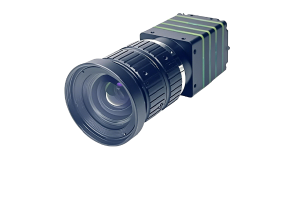

定焦全国产化机芯

Fixed-Focus Fully Domestic Image Modules

产品介绍
  • 定焦全国产化机芯，主要以辰芯GMAX3405、GMAX4002、海图微HT501A等sensor，和公司自主研发的全国产化图像处理平台，面向相关领域的需求而设计开发的系列产品，已经应用国内多个型号项目中
  • 视频输出接口有：Camera Link base/mid、SDI、AVT、LVDS、MIPI、网口等
  • The fixed-focus fully domestic image modules are primarily designed for military applications, integrating sensors such as ChenXin GMAX3405, GMAX4002, and Haituwei HT501A with a fully domestic image processing platform developed by the company. These products have been successfully applied to various domestic projects.
  • The video output interfaces include CameraLink Base/Mid, SDI, AVT, LVDS, MIPI, and Ethernet.
技术参数

产品型号

ZY3405-XX

ZY4002-XX

ZYHT501-XX

探测器类型

辰芯GMAX3405

辰芯GMAX4002

海图微HT501A

最大图像分辨率

2048 X2048

1920 X1080

1920 X1080

像元大小

3.4u

4.0u

3.5u

靶面大小

2/3英寸

1/1.7英寸

1/1.8英寸

国产化率

100%

最高帧率

60 FPS

曝光模式

全局曝光

色彩

彩色/黑白

动态范围

≥68DB

≥65DB

≥65DB

图像处理

滤波/增强/对比度/亮度调整/十字架等，其他需求可以定制

自动控制

AE/AGC/AWB等

控制接口

串口/网口控制上下文

升级接口

支持串口/网口升级

功耗

≤3.5W

≤3.2W

≤3.2W

常规尺寸

30mm (长)x 30 mm(宽)/34mm(长) x34mm(宽)

(高度和接口相关，其他尺寸可以定制)

视频输出接口

camerlink base/mid、SDI、AVT、LVDS、MIPI、网口等

工作温度

-40°-65°

存储温度

-45°-70°



Product Model

ZY3405-XX

ZY4002-XX

ZYHT501-XX

Detector Type

GMAX3405

GMAX4002

HT501A

Max Resolution

2048 X2048

1920 X1080

1920 X1080

Pixel Size (µm)

3.4u

4.0u

3.5u

Imaging Area

2/3 inch

1/1.7 inch

1/1.8 inch

Localization Rate

100%

Max Frame Rate

60 FPS

Exposure Mode

Global

Color Mode

Color/Mono

Dynamic Range (dB)

≥68DB

≥65DB

≥65DB

Image Processing

Filtering, enhancement, contrast adjustment, brightness adjustment, crosshair, and other customizations.

Auto Control

AE/AGC/AWB, etc

Control Interface

Serial port/Ethernet

Upgrade Interface

Supports serial port/Ethernet upgrades

Power Consumption

≤3.5W

≤3.2W

≤3.2W

Dimensions (mm)

30×30 (L×W) / 34×34 (L×W)
(Height varies by interface; other sizes can be customized.)

Video Output

Camera Link base/Mid, SDI, AVT, LVDS, MIPI, Ethernet

Operating Temp

-40°-65°

Storage Temp

-45°-70°
