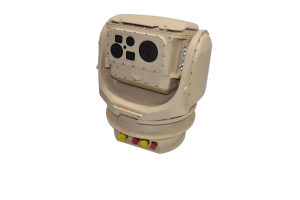

智能反无光电转塔

Intelligent Counter-UAV Electro-Optical Turret

产品介绍
  • 集成可见、红外、激光多光谱成像探测载荷，具备昼夜侦察、跟踪、AI识别（无人机、人、车）、测量能力
  • 模块化设计，电路模块一体化、多款载荷配置可选
  • 可与惯性导航系统深度结合，满足高精度稳像和行车定位需求
  • 小型化轻量化集成化设计，尺寸小、重量轻、稳像效果好
  • 结构电路一体化设计，满足车载环境适应性和EMC需求
  • Integrated Multispectral Imaging: Combines visible light, infrared, and laser payloads for day-night reconnaissance, tracking, AI recognition (drones, people, vehicles), and measurement capabilities
  • Modular Design: Integrated circuit modules with multiple payload configurations available
  • Inertial Navigation Integration: Provides high-precision stabilization and vehicular positioning
  • Compact and Lightweight: Small size, low weight, excellent stabilization performance
  • Structural-Circuit Integration: Designed for vehicular environmental adaptability and EMC compliance
技术参数



   系统性能
系统类型 车载跟踪稳像  重量 ＜30kg
    伺服性能
平台轴系 两轴两框 方位范围 N*360°
俯仰范围

-10°～+85°


调转速度

方位≥150°/s

俯仰≥90°/s

 跟踪速度  ≥25°/s
稳定精度

80urad(1σ，2°/2Hz)

  角位置精度 ＜0.02°
 可见光相机
分辨率及帧率 1920×1080@60fps 视场角 2.5°～25°
作用距离

无人机（精灵4）识别跟踪≥1500m

车辆识别跟踪≥6000m
红外热像仪
分辨率及帧率 640×512@50fps 视场角

2.5°～10°
作用距离

无人机（精灵4）识别跟踪≥800m

车辆识别跟踪≥2000m
激光测距机
测量范围 50～1500m（精灵4）
系统控制及视频接口
控制接口 CAN口 视频接口 以太网
系统电源接口
电源接口 DC 18V～33V 功耗

平均≤100W

最大≤350W
环境适应性
工作温度 -40℃～+55℃ 储存温度 -50℃～+70℃
振动冲击

GJB150.18A功能冲击

GJB150.16A组合轮式车辆振动环境



 System Performance
System Type Vehicle-mounted tracking and stabilization imaging Weight

＜40kg
    Servo Performance
Platform Axes Two-axis, two-frame system Azimuth Range N×360°
Elevation Range  -10°～+85°
Slewing Speed Azimuth: ≥150°/s
Elevation: ≥90°/s		 Tracking Speed ≥25°/s
Stabilization Accuracy 80urad(1σ，2°/2Hz)   Angular Position Accuracy ＜0.02°
 Visible Light Camera
Resolution & Frame Rate 1920×1080@60fps FOV

2.5°～25°
Recognition Distance Drone (Phantom 4): ≥1500m
Vehicle: ≥6000m
Infrared Thermal Imaging
Resolution & Frame Rate 640×512@50fps FOV

2.5°～10°
Recognition Distance Drone (Phantom 4): ≥800m
Vehicle: ≥2000m
Laser Rangefinder
Laser Rangefinder

50–1500m (Phantom 4)
Control and Interfaces
Control Interface CAN interface Video Interface Ethernet
System Power Interface
Power Input DC 18V～33V Power Consumption

Average ≤100W

Maximum ≤350W
Environmental Adaptability
Operating Temperature -40℃～+55℃ Storage Temperature -50℃～+70℃
Vibration and Shock Functional Shock: GJB150.18A   Combination Wheeled Vehicle Vibration: GJB150.16A
