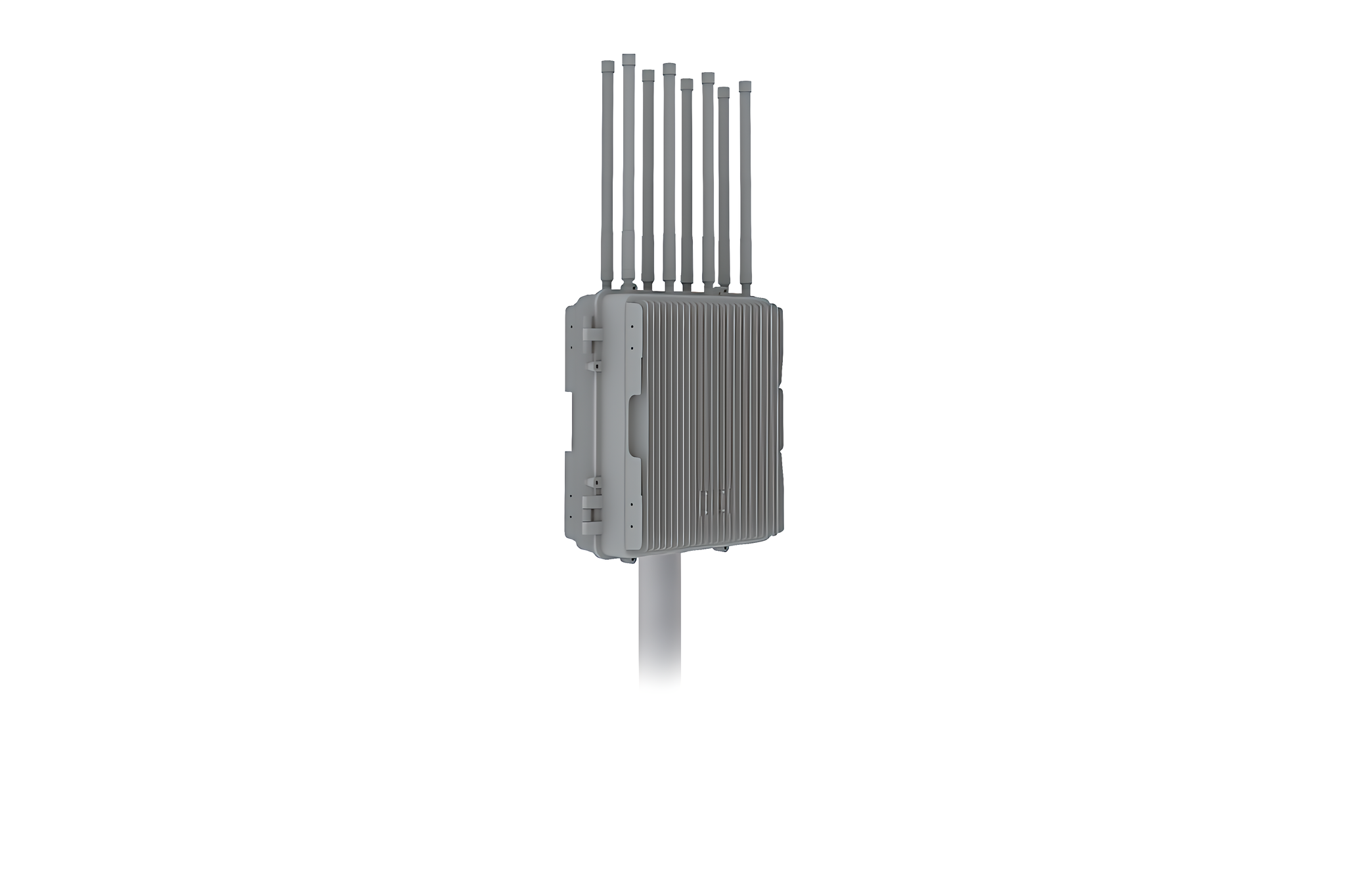

YZ046 便携式侦收/干扰/模拟系统

YZ046 Portable Interception/Jamming/Simulation System

产品介绍
  • 具系统采用小型化、轻量化设计思路，将通信信号侦察、通信信号干扰和通信信号模拟生成综合集成一体设计，可完成对侦察区域内通信信号检测、采集、分析等功能
  • 可根据任务需要实现多种方式的干扰，并具有对通信模拟生成的能力。
  • The system adopts a compact and lightweight design approach, integrating communication signal reconnaissance, jamming, and simulation generation into a single comprehensive design. It is capable of detecting, collecting, and analyzing communication signals within the reconnaissance area, and can implement multiple types of interference based on mission requirements
  • The system can implement multiple types of interference based on mission requirements. Additionally, it possesses the capability for communication signal simulation generation
技术参数



技术参数 规格
工作频段 2MHz～6GHz
瞬时工作带宽 150 MHz
干扰模拟 多种干扰样式
干扰信号带宽 3kHz~60MHz
接收机灵敏度 ≤-110dBm
适应信号类型 定频、跳频
识别信号种类：AM、FM、FSK、MSK、BPSK、QPSK、8PSK、16QAM、32QAM 等
扫描速度 ≥100GHz/s@25kHz
功能 具备多网台分选能力
通信模拟信号路数 不少于 16 路，每路参数可控
发射方式 连续、间歇发射，发射时间可设定



Technical Parameter Specification Description
Operating Frequency Band 2MHz～6GHz
Instantaneous Bandwidth 150 MHz
Interference Simulation Multiple Interference Types
Interference Signal Bandwidth 3kHz~60MHz
Receiver Sensitivity ≤-110dBm
Adaptable Signal Types Fixed Frequency, Frequency Hopping
Identifiable Signal Types: AM, FM, FSK, MSK, BPSK, QPSK, 8PSK, 16QAM, 32QAM, etc.
Scan Speed ≥100GHz/s@25kHz
Function Multi-Channel Discrimination Capability
Communication Simulation Channels Minimum 16 Channels, Each with Adjustable Parameters
Transmission Modes Continuous, Intermittent, with Adjustable Transmit Time
