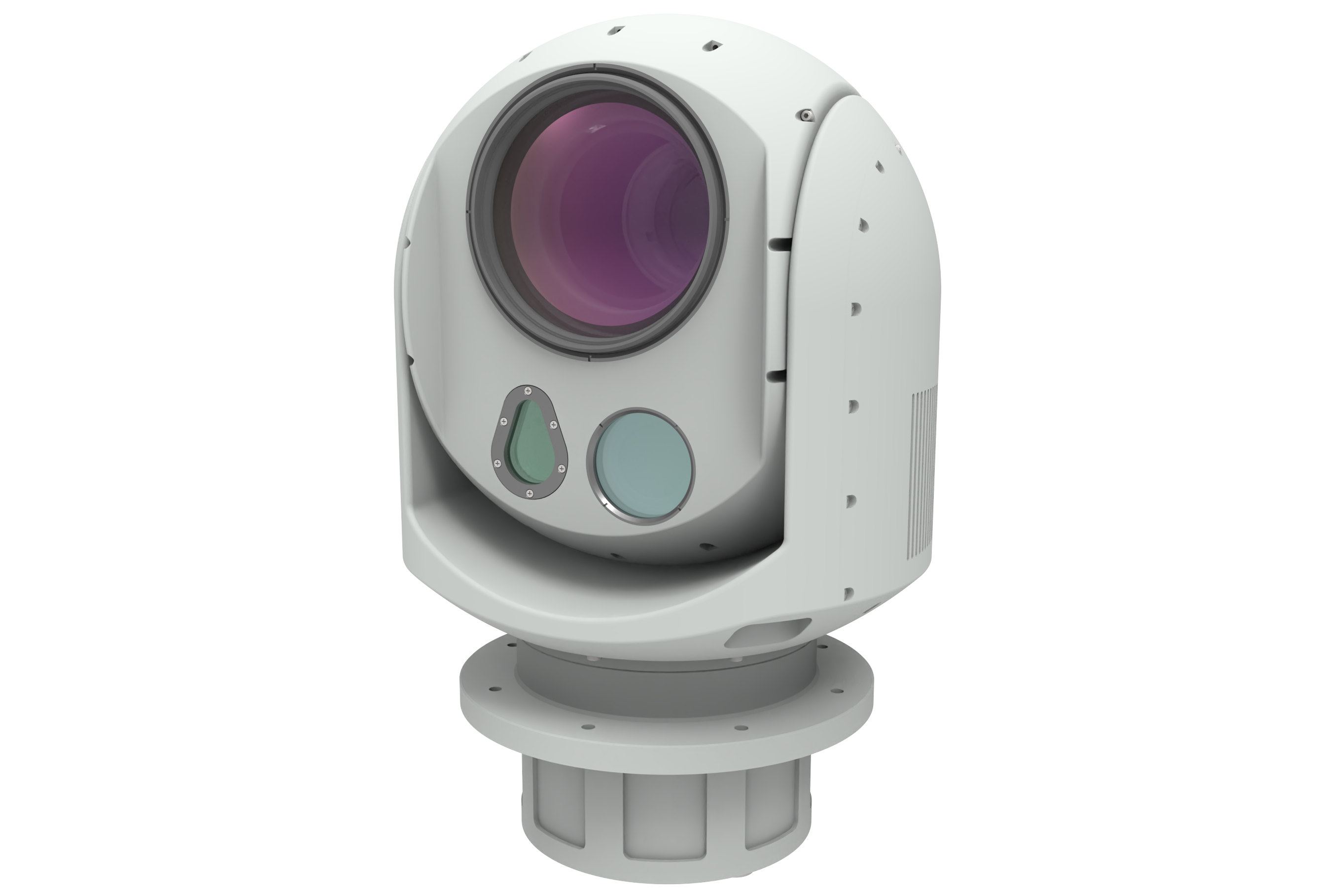

LT-CUAS35UC-C1 光电转塔

LT-CUAS35UC-C1 Electro-Optical Turret

产品介绍
  • 集成可见、红外、激光多光谱成像探测载荷，具备昼夜侦察、跟踪、AI识别（无人机、人、车）、测量定位能力
  • 小型化轻量化集成化设计，尺寸小、重量轻、稳像效果好
  • 结构电路一体化设计，满足车载环境适应性和EMC需求
  • 模块化设计，电路模块一体化、多款载荷配置可选
  • 具有断电自锁功能（方位、俯仰）
  • Integrated Multispectral Imaging: Combines visible light, infrared, and laser payloads for day-night reconnaissance, tracking, AI recognition (drones, people, vehicles), and measurement positioning capabilities
  • Compact and Lightweight: Small size, low weight, excellent stabilization performance
  • Structural-Circuit Integration: Designed for vehicular environmental adaptability and EMC compliance
  • Modular Design: Integrated circuit modules with multiple payload configurations available
  • With power failure lock function (azimuth, elevation)
技术参数
   系统性能
系统类型 车载反无跟踪系统 重量 ＜35kg
    伺服性能
平台轴系 两轴两框 方位范围 N×360°
俯仰范围 -90°～+90° 调转速度

方位：≥120°/s

俯仰：≥60°/s
跟踪速度  ≥25°/s 稳定精度

 60urad～150urad

可定制（1σ，2°/2Hz）
 角位置精度 ＜0.02°
 可见光相机
分辨率及帧率 1920×1080@50/60fps 视场角 1.9°～36°
作用距离

 精灵4无人机≥1.5km 车辆≥6km
非制冷红外热像仪
分辨率及帧率 640×512(12um)@50fps 视场角 2.9°～14°
作用距离 精灵4无人机≥0.7km 车辆≥2km
激光测距机
测量范围(15Hz) 50～1500m(精灵4)(0.6mrad)
系统控制及视频接口
控制接口 CAN接口 视频接口 以太网
系统电源接口
电源接口 DC 18V～33V 功耗 平均≤100W   最大≤350W
环境适应性
工作温度 -40℃～+55℃ 储存温度 -45℃～+70℃
振动冲击 GJB150.18A 功能冲击    GJB150.16A 组合轮式车辆



 System Performance
System Type Vehicle-mounted Counter-UAV Weight

＜35kg
    Servo Performance
Platform Axes Two-axis, two-frame Azimuth Range N×360°
Elevation Range  -90°～+90° Slewing Speed Azimuth: ≥120°/s
Elevation: ≥60°/s
Tracking Speed ≥25°/s Stabilization Accuracy

60urad～150urad

Customizable（1σ，2°/2Hz）
  Angular Position Accuracy ＜0.02°
 Visible Light Camera
Resolution & Frame Rate 1920×1080@50/60fps FOV

1.9°～36°
Recognition Distance Drone (Phantom 4): ≥1.5km  Vehicle: ≥6km
Uncooled Infrared Thermal Imaging
Resolution & Frame Rate 640×512(12um)@50fps FOV

2.9°～14°
Recognition Distance Drone (Phantom 4): ≥0.7km  Vehicle: ≥2km
Laser Rangefinder
Laser Rangefinder(15Hz)

50~1500m (Phantom 4)(0.6mrad)
Control and Interfaces
Control Interface CAN interface Video Interface Ethernet
System Power Interface
Power Input DC 18V～33V Power Consumption

Average ≤100W   Maximum ≤350W
Environmental Adaptability
Operating Temperature -40℃～+55℃ Storage Temperature -45℃～+70℃
Vibration and Shock Functional Shock: GJB150.18A   Combination Wheeled Vehicle Vibration: GJB150.16A
