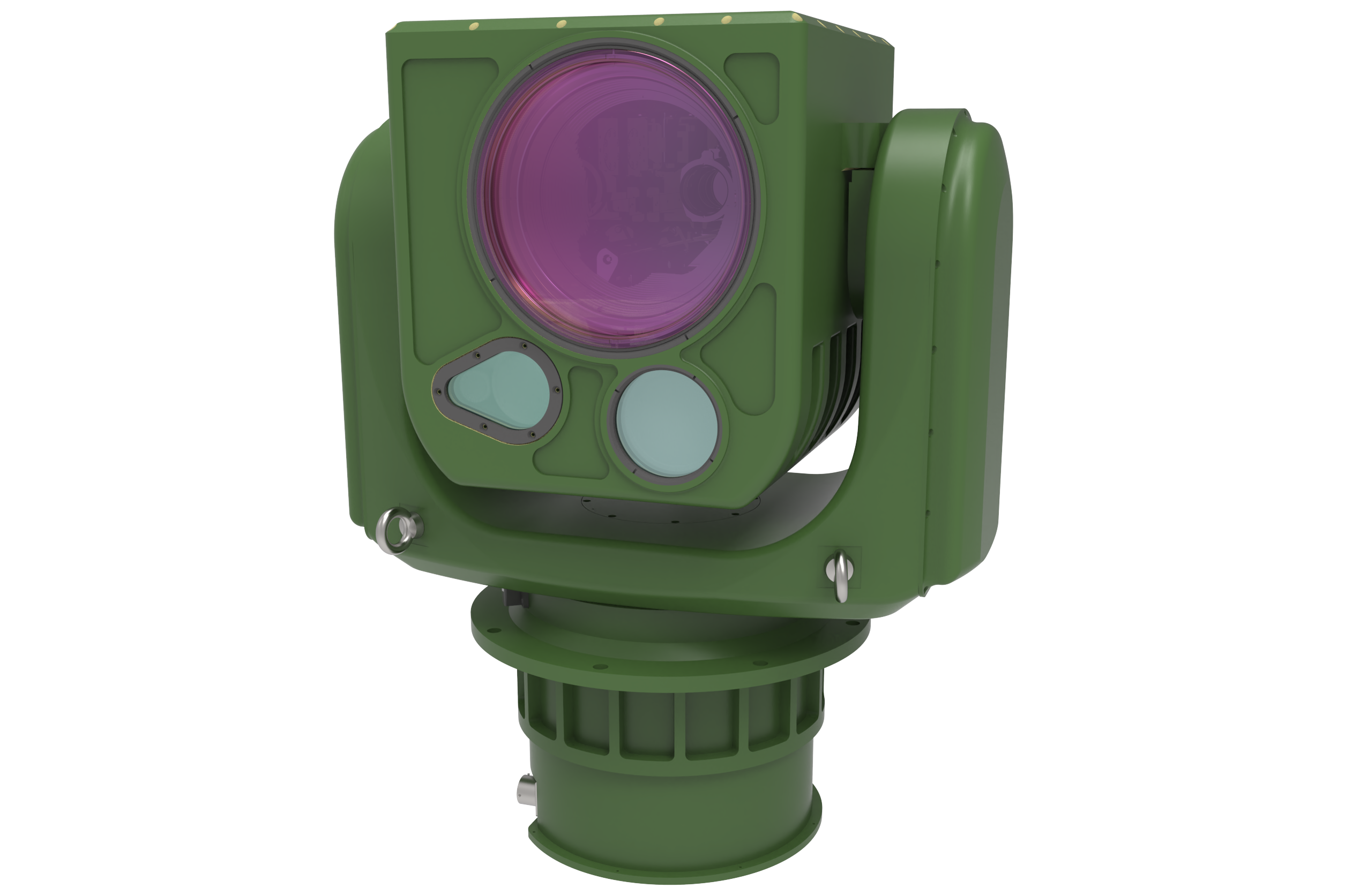

LT-CUAS70UR-C1 光电转塔

LT-CUAS70UR-C1 Electro-Optical Turret

产品介绍
  • 集成可见、红外、激光多光谱成像探测载荷,具备昼夜侦察、跟踪、AI识别(无人机、人、车)、测量定位能力
  • 小型化轻量化集成化设计,尺寸小、重量轻、稳像效果好
  • 结构电路一体化设计,满足车载环境适应性和EMC需求
  • 模块化设计,电路模块一体化、多款载荷配置可选
  • 具有断电自锁功能(方位、俯仰)
  • Integrated Multispectral Imaging: Combines visible light, infrared, and laser payloads for day-night reconnaissance, tracking, AI recognition (drones, people, vehicles), and measurement positioning capabilities
  • Compact and Lightweight: Small size, low weight, excellent stabilization performance
  • Structural-Circuit Integration: Designed for vehicular environmental adaptability and EMC compliance
  • Modular Design: Integrated circuit modules with multiple payload configurations available
  • With power failure lock function (azimuth, elevation)
技术参数
   系统性能
系统类型 车载反无跟踪系统 重量 ≤70kg
    伺服性能
平台轴系 两轴两框 方位范围 N×360°
俯仰范围 -10°~+85° 调转速度

方位:≥120°/s

俯仰:≥60°/s

跟踪速度  ≥25°/s 稳定精度

 40urad~150urad

可定制(1σ,2°/2Hz)

 角位置精度 ≤0.02°
 可见光相机
分辨率及帧率 1920×1080@50/60fps 焦距范围 14-420mm
作用距离

车辆≥15km 人员≥4km 精灵4≥3km

制冷红外热像仪
分辨率及帧率 640×512(15um)@50fps 焦距范围 23-680mm
作用距离 车辆≥11km 人员≥5km 精灵4≥3km
激光测距机
测量范围(12.5Hz)  测距≥3km(精灵4)(1.6mrad)
系统控制及视频接口
控制接口 CAN接口 视频接口 SDI/以太网
系统电源接口
电源接口 DC 18V~33V 功耗 平均≤150W   最大≤500W
环境适应性
工作温度 -40℃~+55℃ 储存温度 -45℃~+70℃
振动冲击 GJB150.18A 功能冲击    GJB150.16A 组合轮式车辆



 System Performance
System Type Vehicle-mounted Counter-UAV Weight

≤70kg

    Servo Performance
Platform Axes Two-axis, two-frame Azimuth Range N×360°
Elevation Range  -10°~+85° Slewing Speed Azimuth: ≥120°/s
Elevation: ≥60°/s
Tracking Speed ≥25°/s Stabilization Accuracy

40urad~150urad

Customizable(1σ,2°/2Hz)

  Angular Position Accuracy <0.02°
 Visible Light Camera
Resolution & Frame Rate 1920×1080@50/60fps Focal Length range

14-420mm

Recognition Distance  Vehicle: ≥15km   Personnel≥4km  Drone (Phantom 4): ≥3km
Cooled Infrared Thermal Imaging
Resolution & Frame Rate 640×512(15um)@50fps Focal Length range

23-680mm

Recognition Distance Vehicle: ≥11km   Personnel≥5km  Drone (Phantom 4): ≥3km
Laser Rangefinder
Laser Rangefinder(12.5Hz)

≥3km (Phantom 4)(1.6mrad)

Control and Interfaces
Control Interface CAN interface Video Interface SDI/Ethernet
System Power Interface
Power Input DC 18V~33V Power Consumption

Average ≤150W   Maximum ≤500W

Environmental Adaptability
Operating Temperature -40℃~+55℃ Storage Temperature -45℃~+70℃
Vibration and Shock Functional Shock: GJB150.18A   Combination Wheeled Vehicle Vibration: GJB150.16A
